WEIQUE WIND-ENERGY PRODUCT LINE / Clamp Systems
Wind-turbine clamp systems organized around real installation zones, environmental loads and project documentation.

Clamp Systems

Product families selected by load, environment and installation geometry.

WIND TURBINE CLAMP SOLUTIONS · SERIES & APPLICATION DATA
SERIES COUNT
6
SIZE STEPS
89
CAD AVAIL.
STEP · IGES
QMS
ISO 9001:2015
CODE FIG. SERIES · DESCRIPTION PIPE Ø MATERIAL PN STANDARD DATA SHEET
HS-100
HS-100 heavy-series PA66-GF nylon wind turbine cable clamp with zinc-nickel bracket
 Heavy Series HSHeavy-duty single-pipe clamp. Workhorse of nacelle cooling lines.DEFAULT FOR NACELLE COOLING Ø 21 – 273 mm20 dia. steps PA66-GFS355 baseplate 100BAR DIN 3015-1HEAVY On request
TS-200
TS-200 twin-series side-by-side wind turbine pipe clamp for pitch and yaw hydraulic feed and return lines
 Twin Series TSSide-by-side twin clamp. Pitch hydraulic feed + return on one mount.DEFAULT FOR PITCH/YAW Ø 6 – 60 mm28 dia. steps PP · PA66-GFEPDM insert · 8.8 bolts 250BAR DIN 3015-2TWIN On request
SO-300
Stand-Off SOInsulated stand-off clamp for high-temperature cooling mains.DEFAULT FOR TOWER HYDRAULICS Ø 76 – 273 mm14 dia. steps PA66-GF + ceramicS355 stem · 8.8 bolts 160BAR DIN 3015-3STAND-OFF On request
M-400
Marine MAISI 316L marine clamp. Designed to DNV ST-0126 · transition piece.DEFAULT FOR OFFSHORE Ø 33 – 219 mm11 dia. steps AISI 316LA4-80 bolts 160BAR DNV ST-0126by design On request
LS-050
LS-050 light-series PA66 nylon wind turbine clamp with zinc-nickel bracket for control and signal cables
 Light Series LSLight series for control-air and small instrumentation lines.CONTROL · INSTRUMENT Ø 6 – 42 mm16 dia. steps PPNBR / EPDM · 8.8 bolts 40BAR DIN 3015-1LIGHT On request
EQ
Engineered EQCustom geometries — design, FEM, prototype, type-test in 6 weeks.CUSTOM · NON-STANDARD By drawingany range By specFEM · Ansys —per spec Customper RFQ RFQ →
[a]Default mappings reflect typical OEM specifications; substitutions on request.
[b]All series available with PA66-GF / 316L / aluminium bodies.
[c]Full SKU index on request.
[d]CAD library: STEP / IGES / SolidWorks / Inventor — product-specific files available on request via engineering inquiry →
Selection support
Not sure which fixing system fits? Send the turbine zone, line or cable OD, load, temperature and exposure conditions. Engineering will return a solution and material recommendation.
Send application data →
Engineer response
within 48 h
PRODUCT PHOTOGRAPHY · WIND-ENERGY CLAMP SERIES · Zn-Ni COATED BRACKET
HS-100 heavy-series PA66-GF nylon wind turbine cable clamp with zinc-nickel coated steel bracket, DIN 3015-1 heavy
HS · Heavy NylonPA66-GF body · Zn-Ni bracket

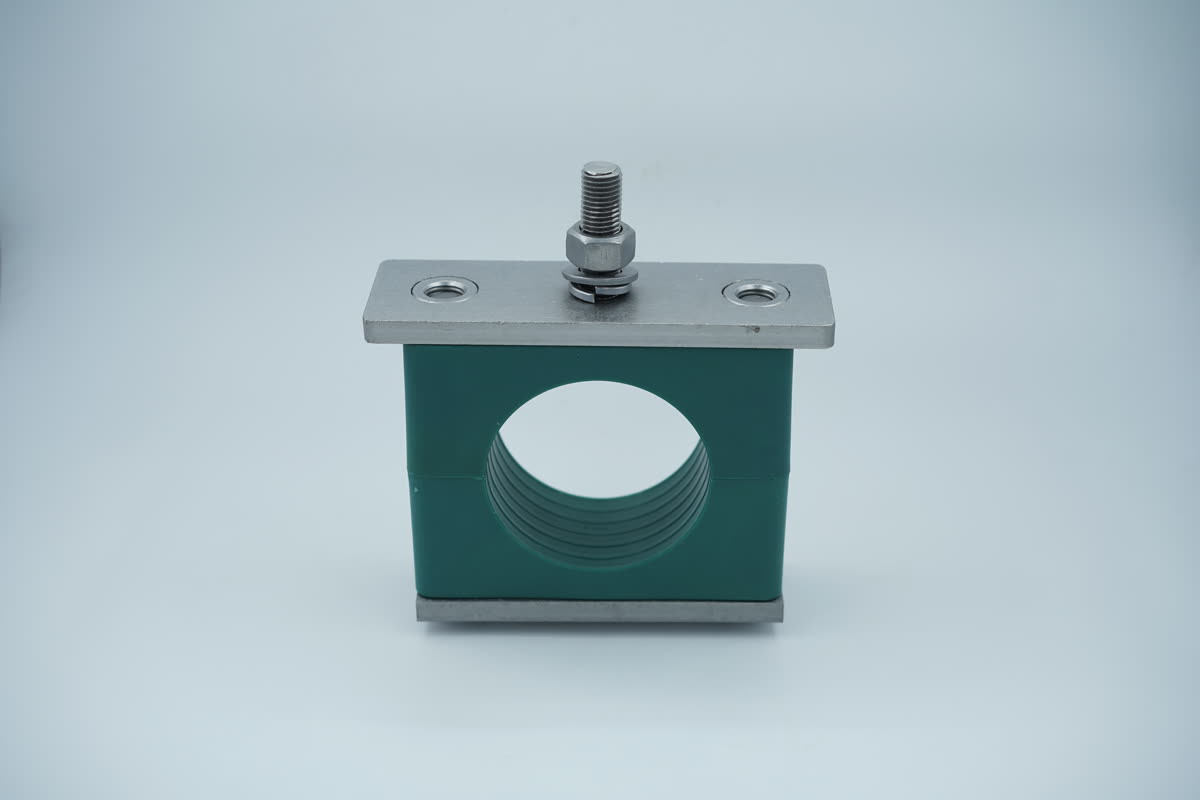

HS-100 heavy wind turbine clamp, zinc-nickel coated bracket for nacelle and tower hydraulic lines
HS · Heavy SeriesZinc-nickel coated · tower lines
HS heavy-series thermoplastic wind turbine pipe clamp, front view, green PP body with galvanised bracket
HS · Heavy PlasticThermoplastic body · front view

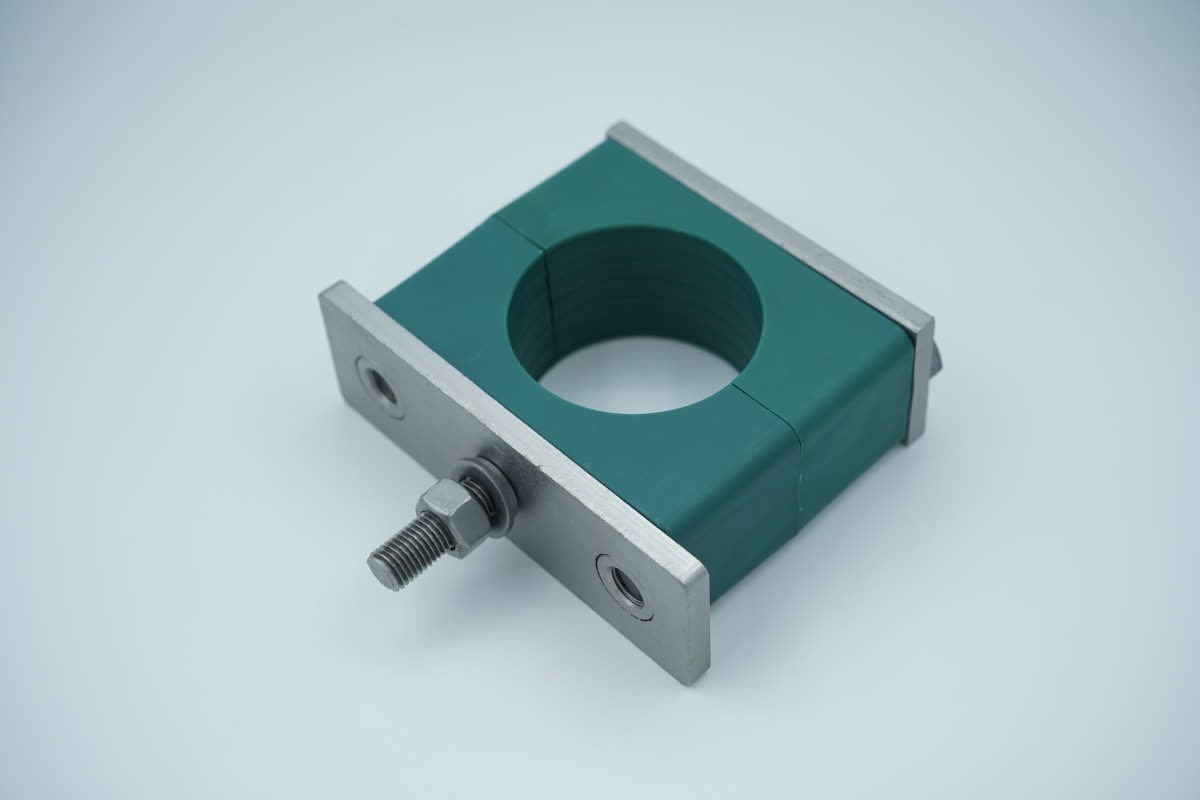

Heavy thermoplastic wind clamp 45-degree view showing EPDM insert depth and bracket bolt pattern
HS · Heavy Plastic45° view showing insert depth
Heavy plastic wind turbine cable clamp 3/4 view showing bracket and body assembly for offshore use
HS · Heavy Plastic3/4 view · bracket detail
LS-050 light-series PA66 nylon wind turbine clamp, front view, zinc-nickel bracket for control and signal cables
LS · Light NylonLS-050 series · control lines

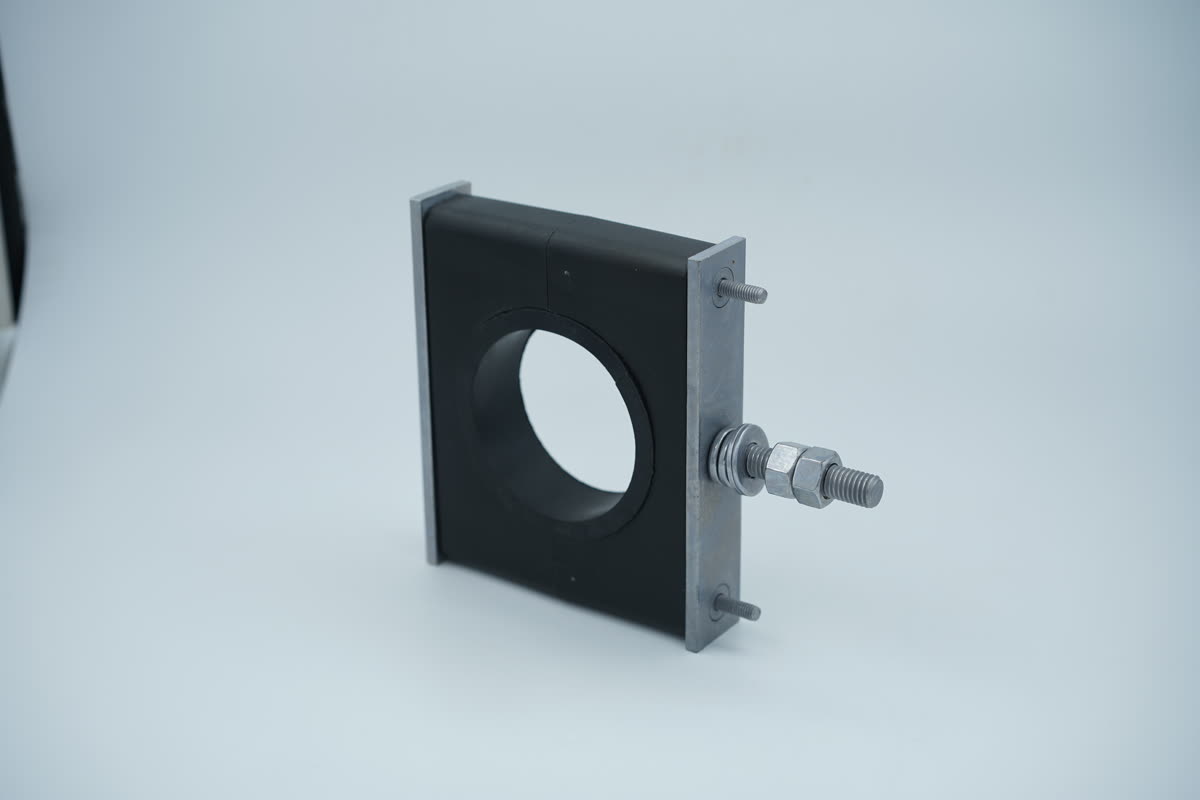

LS-050 light nylon wind clamp side view showing low-profile body depth and DIN 3015-1 light profile
LS · Light NylonSide view · clamp body depth

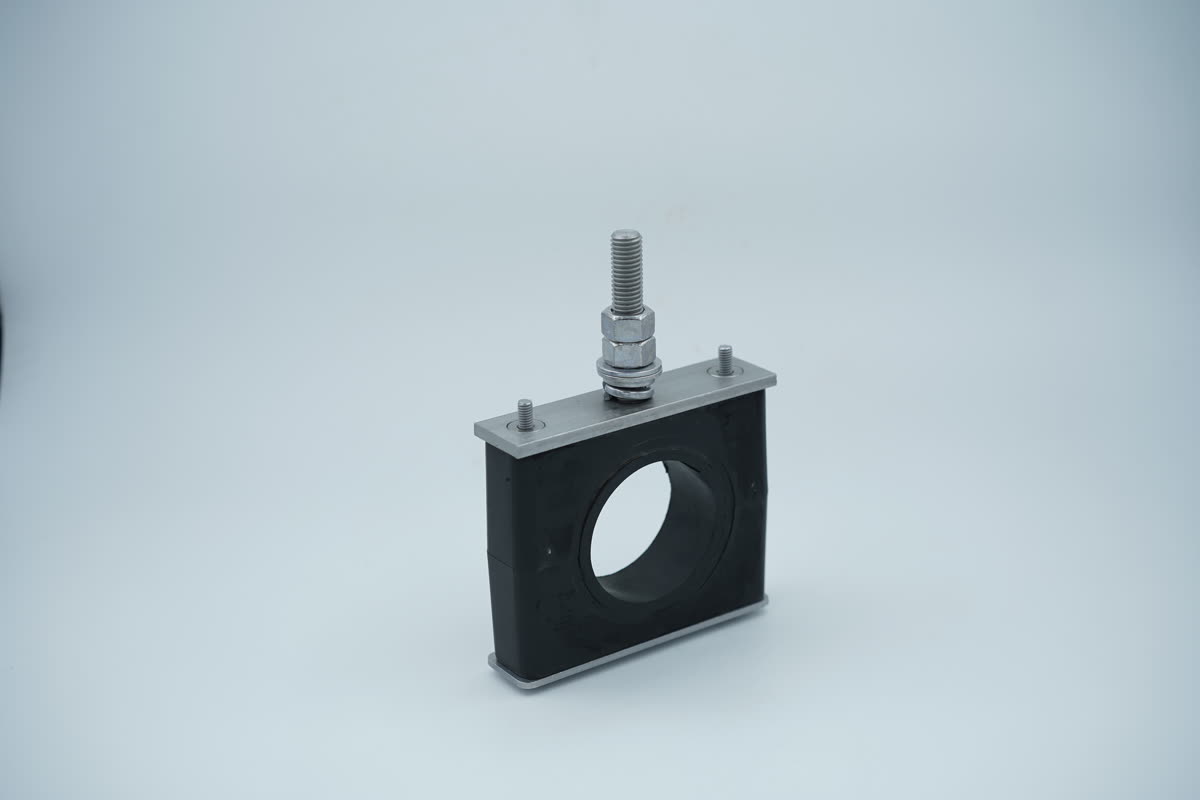

LS-050 light nylon wind turbine cable clamp angular view showing bolt hole pattern and EPDM liner
LS · Light NylonAngular view · bolt pattern
EQ orientable swivel wind turbine clamp pair with zinc-nickel bracket, adjustable pitch and yaw cable routing
EQ · Swivel / OrientableAdjustable orientation · pair shown

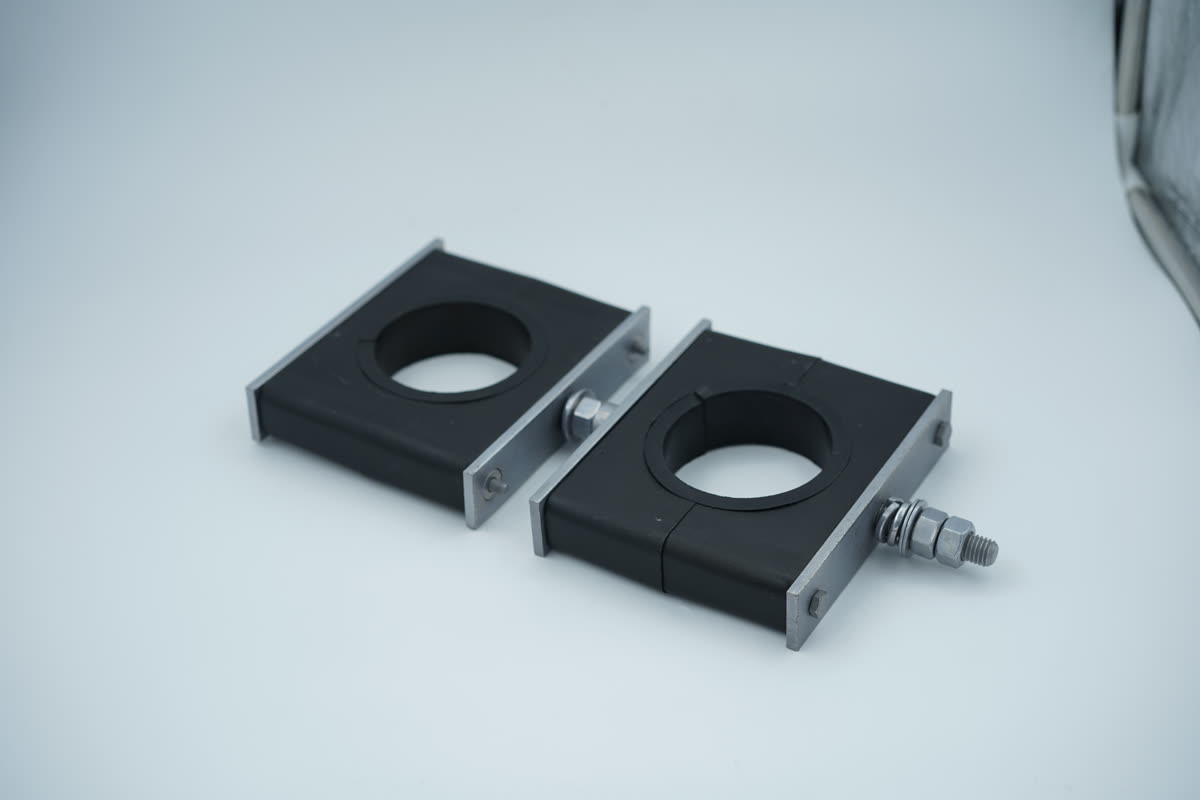

EQ swivel wind clamp angled view showing orientable bracket mechanism and insert cavity detail
EQ · Swivel / OrientableAngle view · insert cavity detail

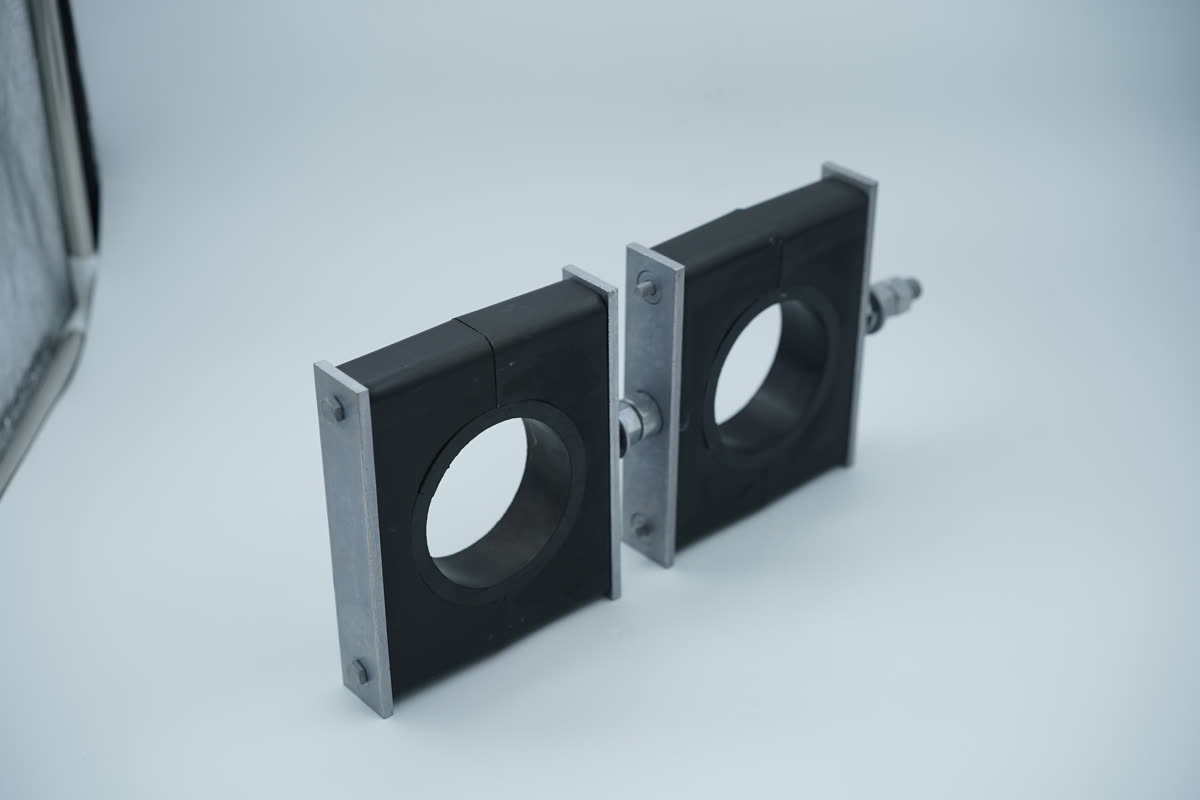

EQ orientable wind turbine pipe clamp front view, zinc-nickel bracket, for nacelle cable management
EQ · Swivel / OrientableFront view · zinc-nickel bracket
All series available with PA66-GF · 316L · aluminium bodiesRequest samples or data sheet →
